AVALD15

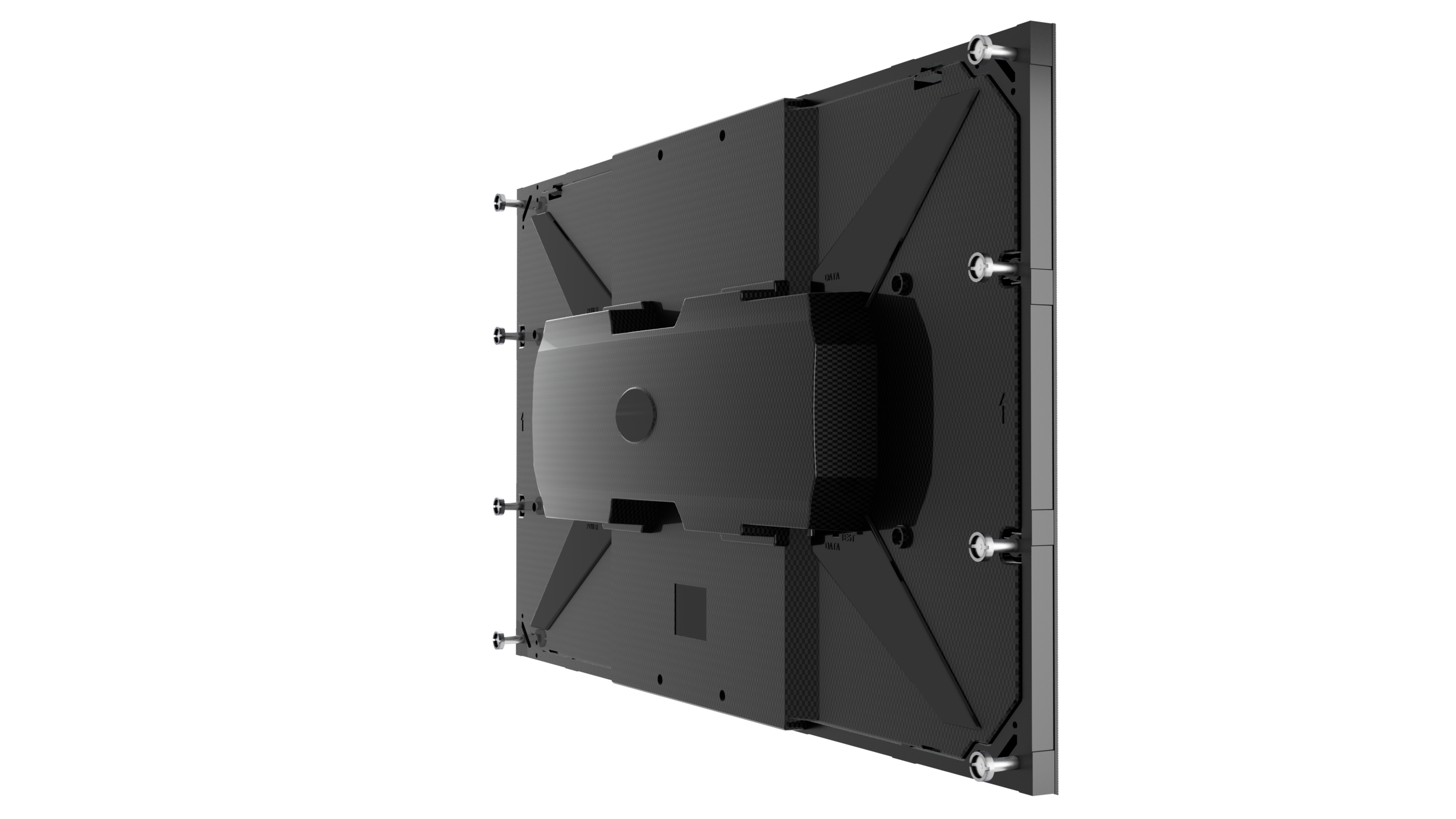

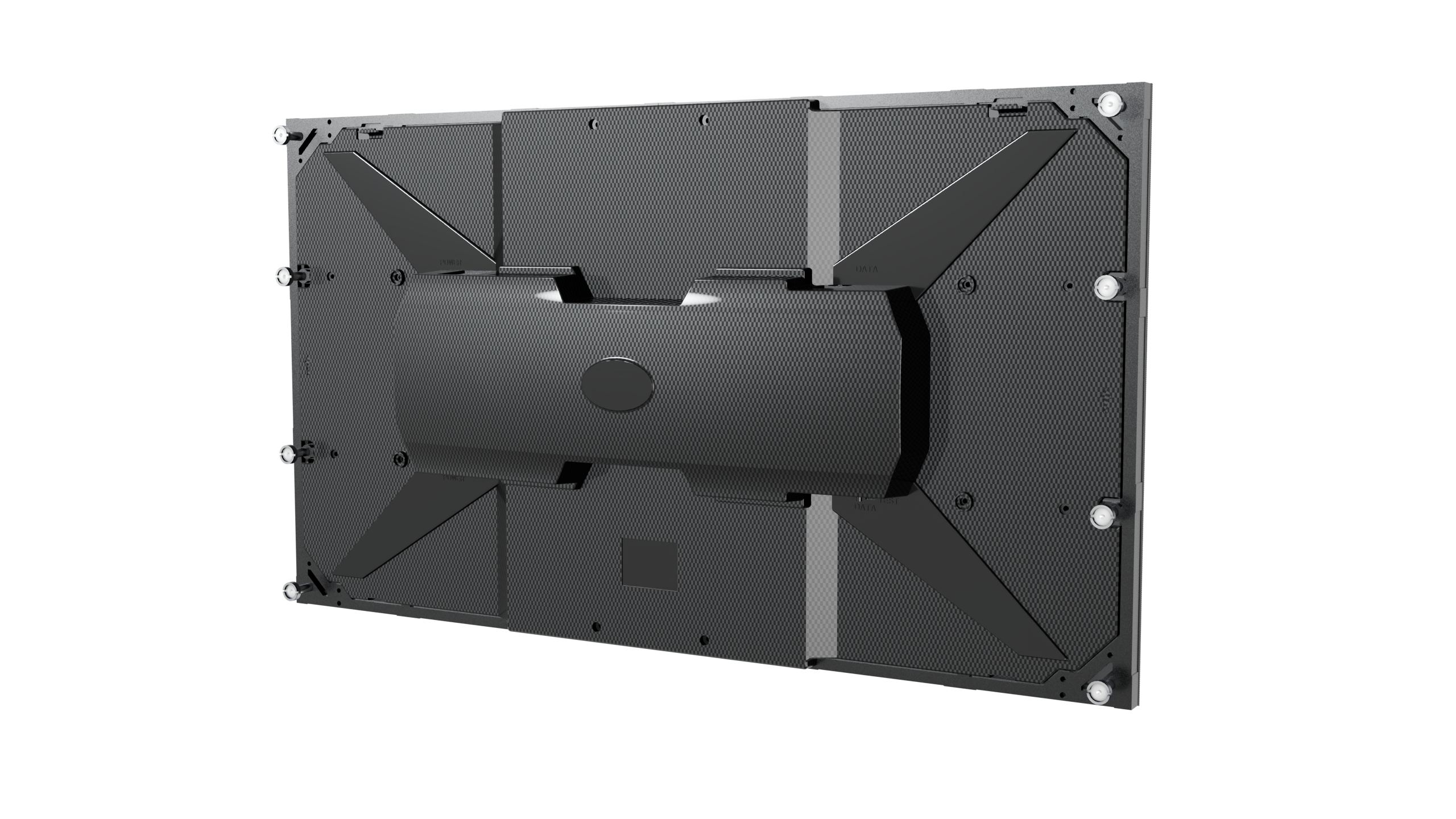

AVALD15 is a professional indoor LED display cabinet designed for high-precision fixed installations where seamless visuals and reliable uptime matter most.
Built on a 16:9 golden-ratio structure with an SMD solution, it delivers clean alignment and consistent image performance across large video walls.
With front-service magnetic modules, hub-based connections for modules and power, and a universal HUB supporting multiple pixel pitches, AVALD15 simplifies both installation and long-term maintenance.
Offering up to 7,680Hz refresh, 600-nit brightness, and 14–22 bit grayscale, it ensures smooth motion and stable color reproduction for control rooms, meeting spaces, and premium showrooms.

Categories,
    AVALD15 – Key Specifications
    Design16:9 Golden Ratio cabinet design, SMD solution
    Installation TypeProfessional design for indoor fixed installation

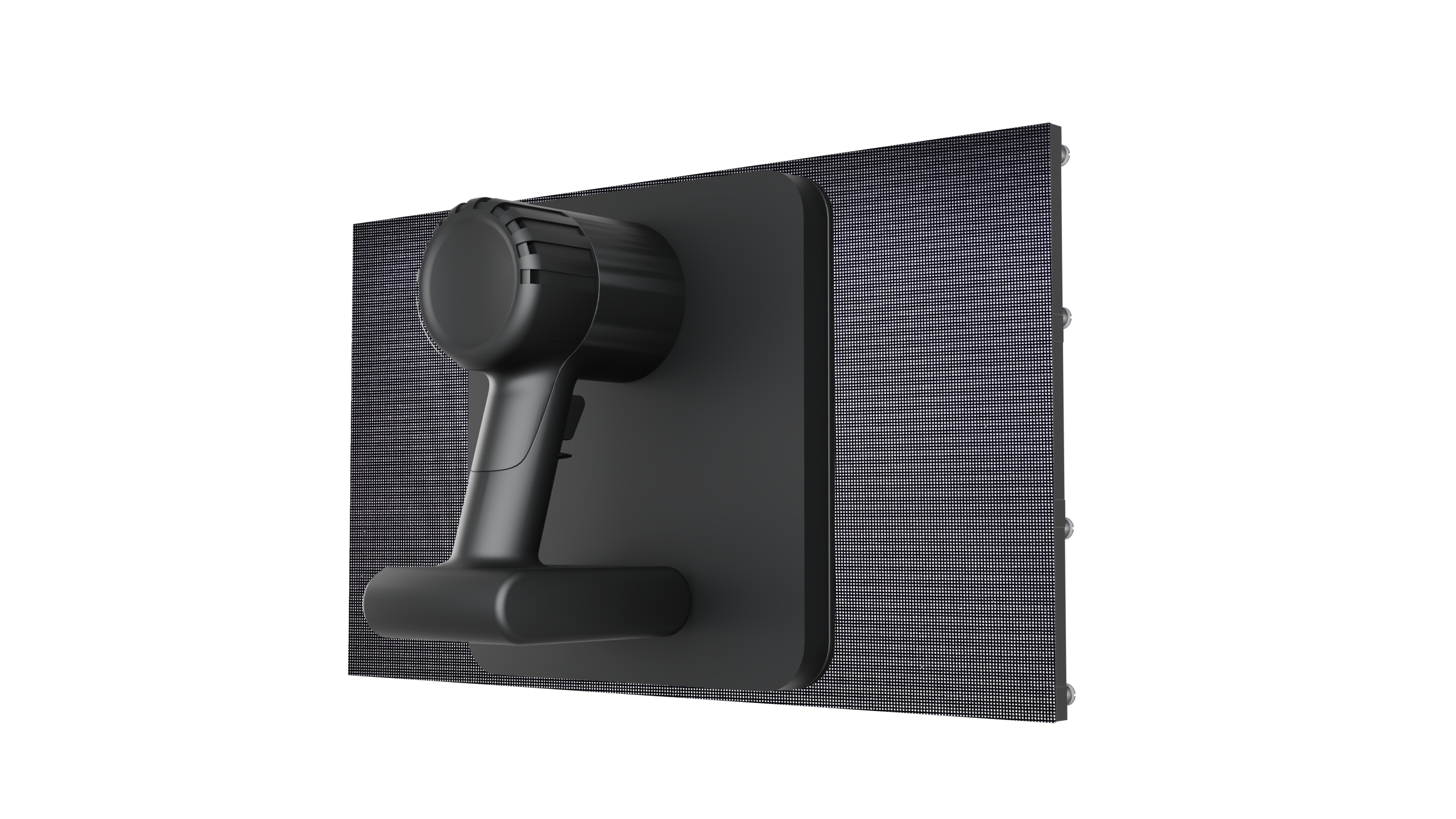

    Service AccessFront service magnetic module (quick maintenance)
    ConnectivityHub connection for modules and power supply, universal HUB for all pixel pitch
    Pixel Pitch Options1.25 mm / 1.56 mm / 1.87 mm
    Pixel DensityP1.25: 640,000 dots/m² — P1.56: 409,600 dots/m² — P1.875: 284,444 dots/m²
    LED TypeP1.25: SMD1010 — P1.56: SMD1212 — P1.875: SMD1515
    Module ResolutionP1.25: 240 × 270 dots — P1.56: 192 × 216 dots — P1.875: 160 × 180 dots
    Driving ModeP1.25: 1/45 scan — P1.56: 1/54 scan — P1.875: 1/45 scan
    Module Size300 × 337.5 mm
    Cabinet Size (W×H×D)600 × 337.5 × 62.1 mm
    Cabinet Weight3.3 kg (standard dimension)
    Cabinet ResolutionP1.25: 480 × 270 dots — P1.56: 384 × 216 dots — P1.875: 320 × 180 dots
    Brightness600 nits
    Refresh Rate7,680 Hz
    Gray Scale14-bit to 22-bit
    Max Power Consumption360 W/m²
    Average Power Consumption120 W/m²
    CertificatesCE, FCC, ETL, CB
    ApplicationsControl centers, conference rooms, showrooms
