| Model |

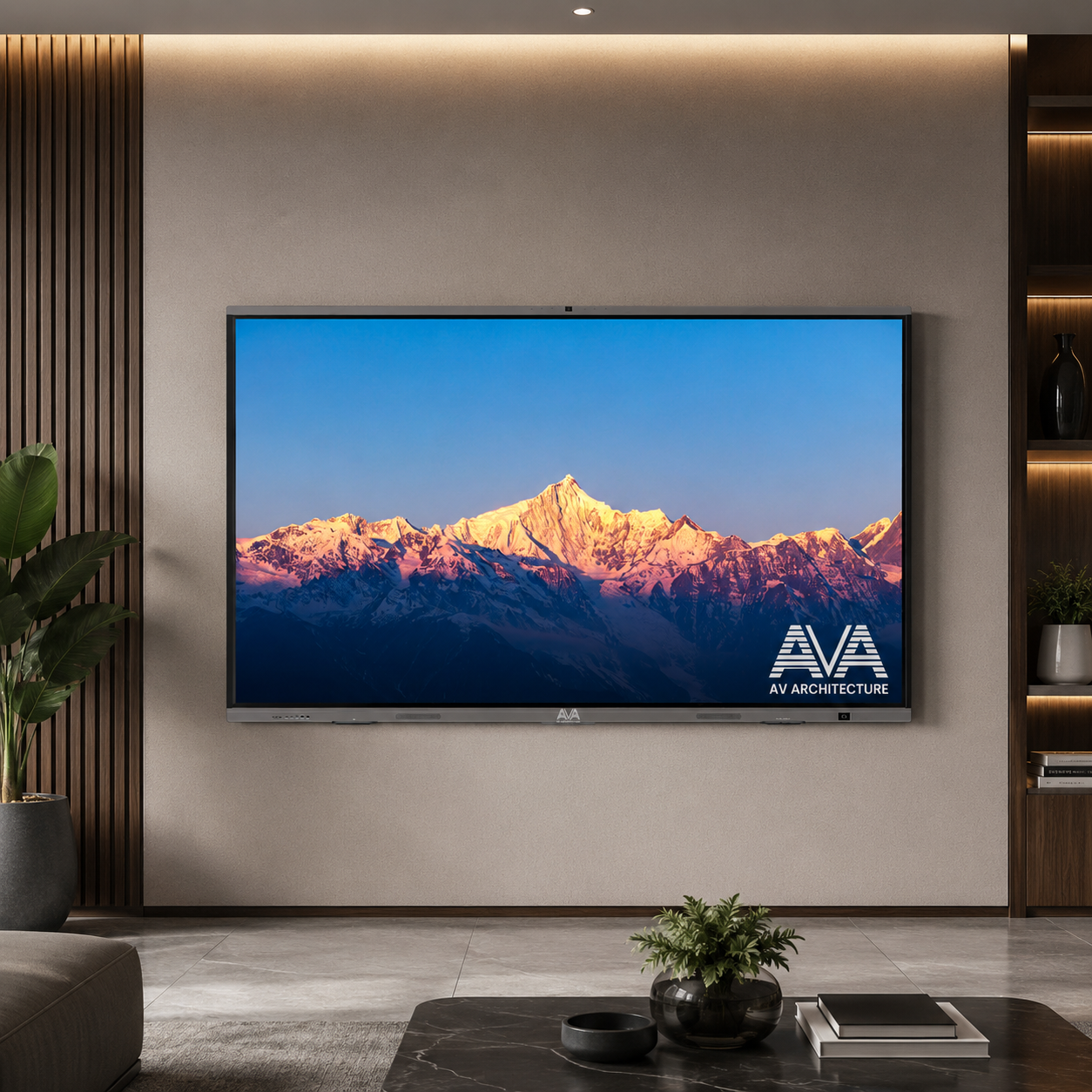

AVA CX7501MC Interactive Flat Panel
|
| Screen Size |
75 inches |
| Resolution |
3840 × 2160 (4K UHD)
|
| Display Response Time |
≤5ms |
| Brightness |
400 cd/m² |
| Viewing Angle |
178° (H/V) |
| Display Glass |
Highly Scratch-Resistant Glass with 7H Hardness
|
| Touch Technology |
IR Touch, 20-Point Touch
|
| Touch Response Time |
≤5ms |
| Touch Accuracy |
±1mm, Writing Height ≤3mm
|
| Writing Technology |
Single Stylus Pen with Two-Colour Writing Support
|
| Processor |
Octa-Core Cortex-A55
|
| GPU |
Quad-Core Mali-G52
|
| Memory |
8GB RAM / 128GB ROM
|
| Operating System |
Android 14.0 |
| Camera |
48MP Camera with Automatic White Balance and 3D Noise Reduction
|
| Camera Viewing Angle |
D: 108° / H: 88° / V: 64°
|
| Microphones |
8-Microphone Array with 0–8m Pickup Distance and 0°–180° Pickup Angle
|
| Microphone Features |
Echo Cancellation, Background Noise Suppression and Gain Compensation
|
| Sound |
2.0 Channel, 2 × 20W Speakers
|
| Wireless Connectivity |
Built-in Wi-Fi 802.11ac/b/g/n/a and Bluetooth 5.0
|
| Front Interfaces |
2 × USB 3.0, 1 × HDMI IN, 1 × Touch, 1 × USB Type-C and 1 × Key
|
| Onboard Interfaces |
TF Card, Android USB 3.0, Public USB 3.0, 2 × HDMI IN, HDMI OUT, Touch, LAN IN/OUT, Line Out, RS232 and Mic In
|
| Screen Sharing |
Wireless Screen Mirroring
|
| Interactive Features |
Split Whiteboard, Parallel Tasks, Hover Ball Mode, Multi-User Functionality and Palm-Rejection Technology
|
| Power Consumption |
Maximum 400W / Standby ≤0.5W
|
| Dimensions (W × H × D) |
1706.8 × 1027.3 × 116 mm
|
| VESA Mount |
600 × 400 mm |
| Net Weight |
50 kg |
