Specification |
Details |
|---|---|
| Model | AVA DX8601 Wall-Mounted Digital Signage |
| Display Size | 86 Inches |
| Panel Grade | A Grade |
| Backlight | LED |
| Resolution | 3840 × 2160 Pixels (4K UHD) |
| Brightness | 500 ± 10 cd/m² (Typical) |
| Contrast Ratio | 1100:1 / 1200:1 / 4000:1 / 5000:1 (Typical) |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H/V) |
| Display Colors | 1.07 Billion Colors (8-bit + Hi-FRC) |
| Processor | 8-Core A55 |
| GPU | G52 × 4 |
| Memory | 2GB RAM / 32GB Storage |
| Operating System | Android 12.0 |
| Audio | 2 × 5W Speakers |
| Power Consumption | ≤380W Maximum / <0.5W Standby |
| Power Input | AC 100–240V, 50/60Hz |
| Connectivity |
DC 12V Input × 1, USB 2.0 × 1, USB 3.0 × 1, RJ45 Ethernet 100M × 1, HDMI IN 2.0 × 1, TF Card × 1 and Line-Out × 1 |
| Display Orientation | Horizontal and Vertical |
| VESA Mount | 800 × 600 mm |
| Dimensions | 1919.4 × 1090.1 × 68.4 mm |
| Net Weight | 40.7 ± 1 kg |

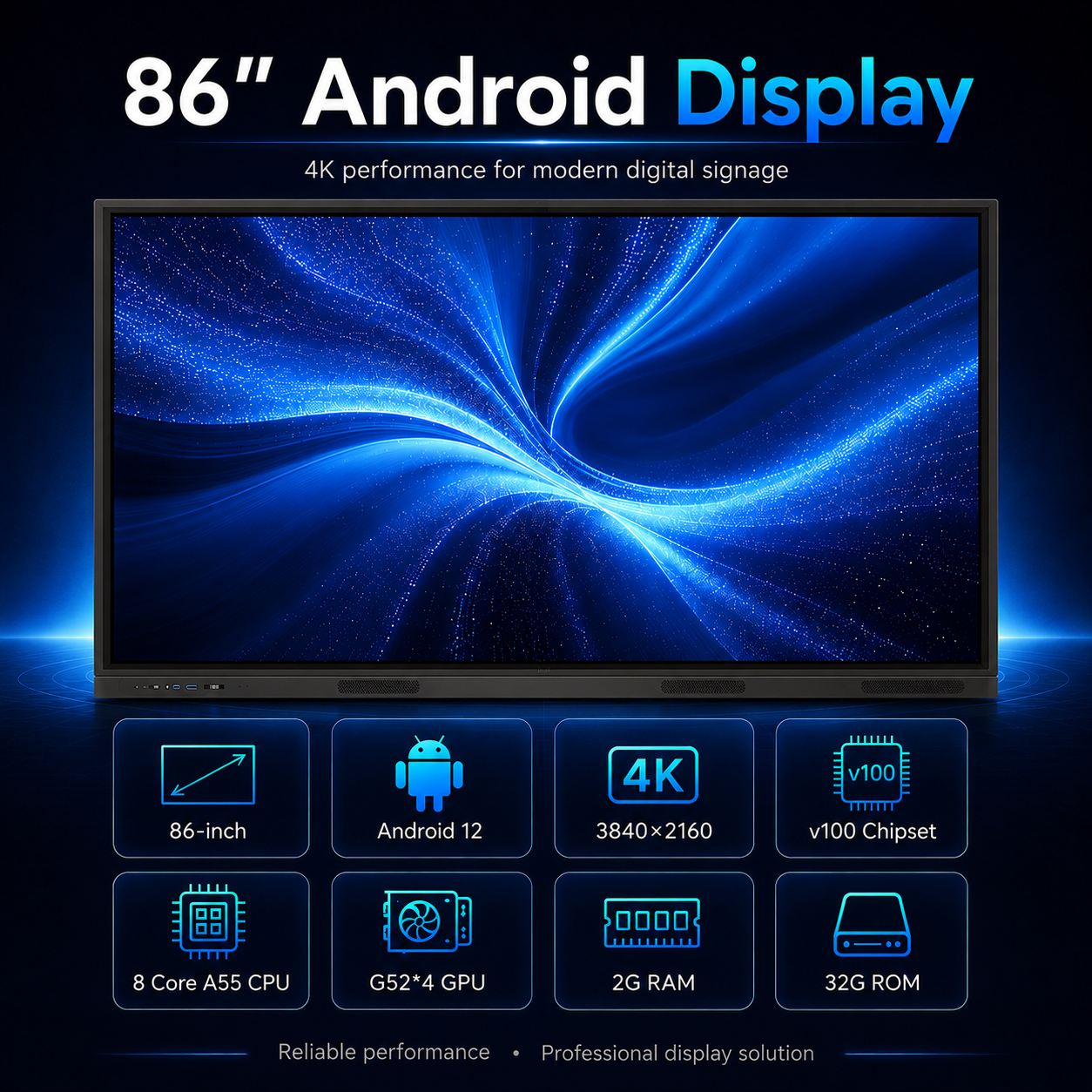

DX8601
Designed for large retail spaces, corporate environments, hospitality venues, and professional visual communication, the AVA DX8601 delivers an impressive 86-inch 4K UHD digital signage solution. Powered by an 8-Core A55 processor, Android 12.0, 2GB RAM, and 32GB storage, it provides reliable performance for displaying images, videos, presentations, web pages, and Android applications. Its LED display offers a sharp 3840 × 2160 resolution, 500 ± 10 cd/m² brightness, and a wide 178° viewing angle for clear and consistent content visibility. With intelligent content scheduling, horizontal and vertical display support, remote monitoring, USB playback, HDMI input, RJ45 Ethernet, TF card support, and built-in dual 5W speakers, the DX8601 is an efficient solution for digital advertising, information displays, and automated content management.
