OPSI5-13420H

OPSI5-13420H is a high-performance OPS module designed to power interactive displays and digital signage with reliable computing. Powered by the Intel® Core™ i5-13420H processor (8 cores, 12 threads) running at 2.1GHz, it ensures smooth multitasking, stable performance, and support for 5K graphics.

Equipped with 8GB RAM (expandable up to 32GB), a 256GB SSD (upgradable to 512GB), and Intel® Iris® Xe/UHD Graphics, this OPS solution provides flexibility and speed. Its compact design, rich I/O ports, and Windows 10 compatibility make it an ideal choice for education, enterprise, and commercial AV applications.

Category

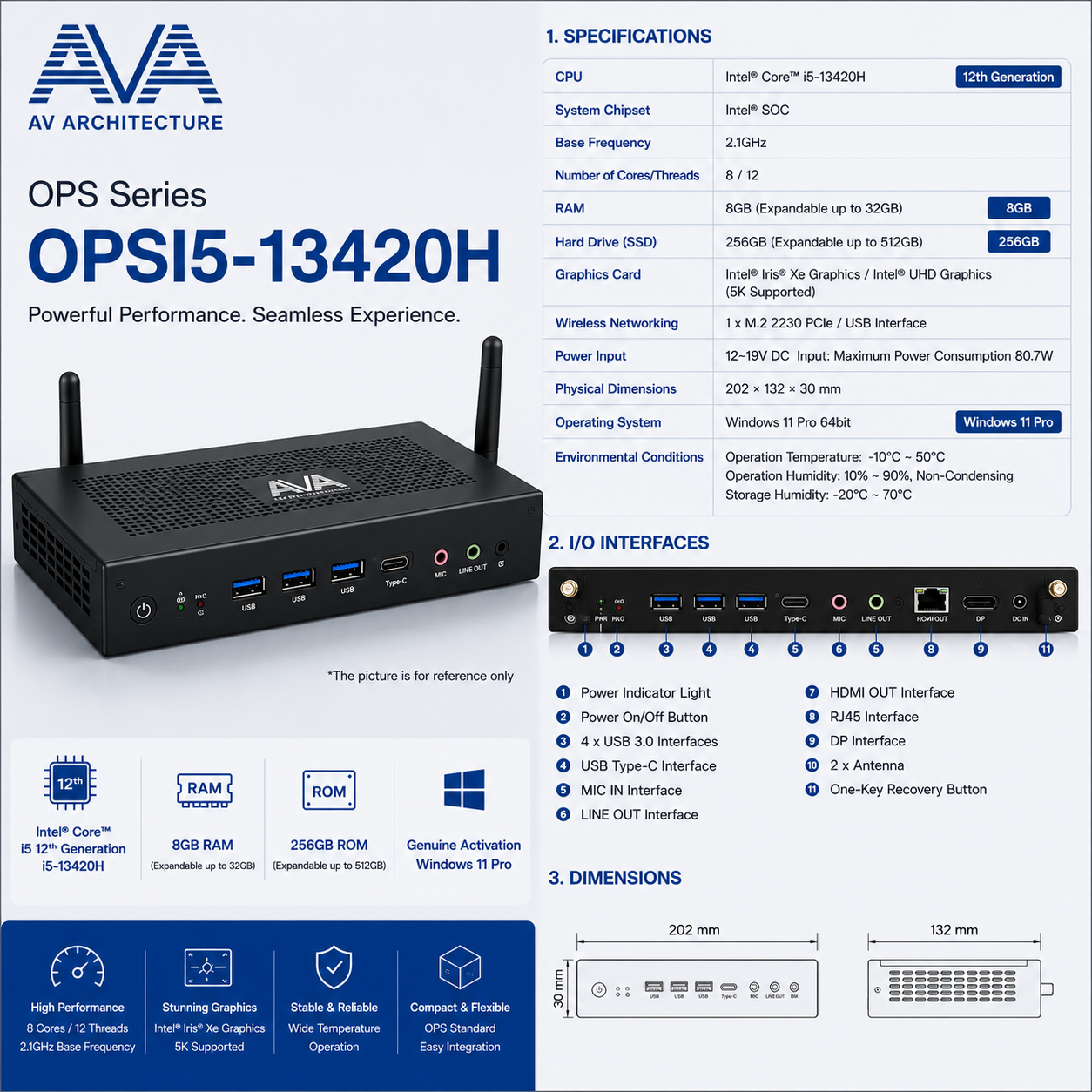

    OPSI5-13420H – Technical Specifications
    ProcessorIntel® Core™ i5-13420H
    ChipsetIntel® SoC
    Base Frequency2.1 GHz
    Cores / Threads8 Cores / 12 Threads
    RAM8GB (Expandable up to 32GB)
    Storage256GB SSD (Expandable up to 512GB)
    GraphicsIntel® Iris® Xe / UHD Graphics (5K supported)
    Wireless1 × M.2 2230 PCIe/USB Interface

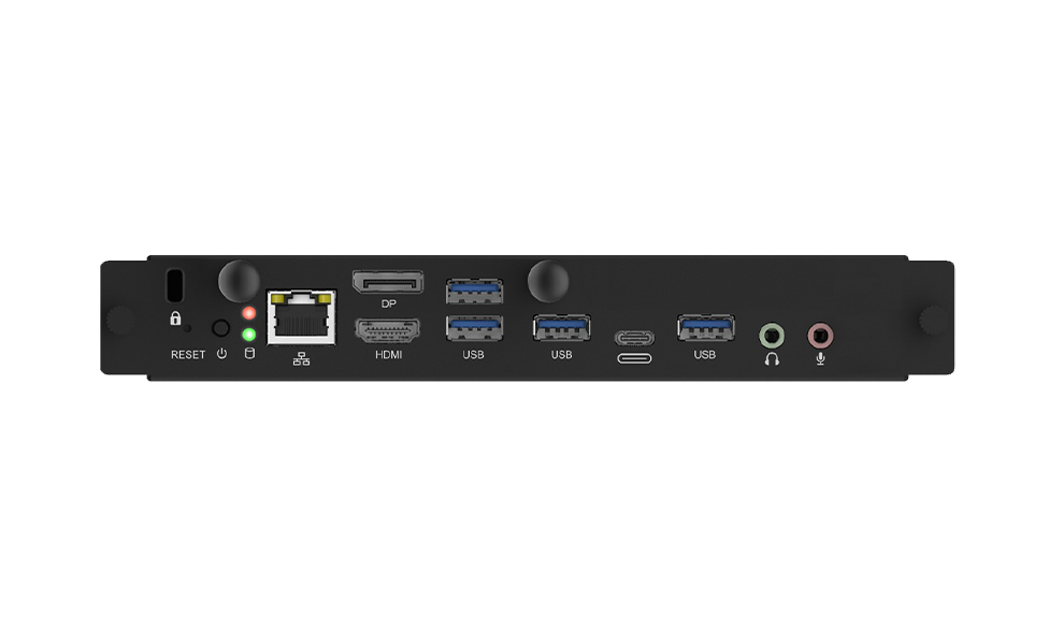

    I/O Interfaces4 × USB 3.0, 1 × USB Type-C, 1 × MIC IN,
    1 × LINE OUT, 1 × HDMI OUT, 1 × RJ45,
    1 × DP, 2 × Antenna, 1 × Power Button,
    1 × Power Indicator, 1 × One-Key Recovery
    Power Input12–19V DC, Max 80.7W
    Dimensions202 × 132 × 30 mm
    Operating SystemWindows 10 64-bit
    Operating Temperature-10℃ ~ 50℃
    Operating Humidity10% – 90% (Non-Condensing)
    Storage Humidity-20℃ ~ 70℃
