| Specification | Details |
|---|---|
| Model | AVA SX7500 Interactive Flat Panel |
| Screen Size | 75 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Response Time | ≤5ms |
| Brightness | 400 cd/m² |
| Viewing Angle | 178° (H/V) |
| Display Glass | 4mm Anti-Glare Tempered Glass |
| Touch Technology | IR Touch, 40-Point Touch |
| Touch Response Time | ≤5ms |
| Touch Accuracy | ±2mm over 90% of the touch area |
| Writing Technology | Single Stylus Pen with Two-Colour Writing Support |
| Processor | Quad-Core Cortex-A73, 1.5GHz |
| Memory | 8GB RAM / 128GB ROM |
| Operating System | Android 14.0 EDLA |
| Supported Systems | Windows 10, Windows 8, Windows 7, Windows XP, Android, Linux, macOS X and Chrome |
| Audio | 2.0 Channel, 2 × 20W Speakers |
| Wireless Connectivity | Built-in Wi-Fi and Bluetooth 5.4 |
| Front Interfaces | 2 × USB, 1 × HDMI IN, 1 × TOUCH USB and 1 × USB Type-C |
| Onboard Interfaces | RJ45, RS232, Optical Out, Mic In, Line Out, USB 3.0, Touch Out, 2 × HDMI and USB 2.0 |
| Interactive Features | Wireless Screen Mirroring, Split Whiteboard, Dual-Pen Support, Eye Protection, Screen Lock and Touch Lock |
SX7500

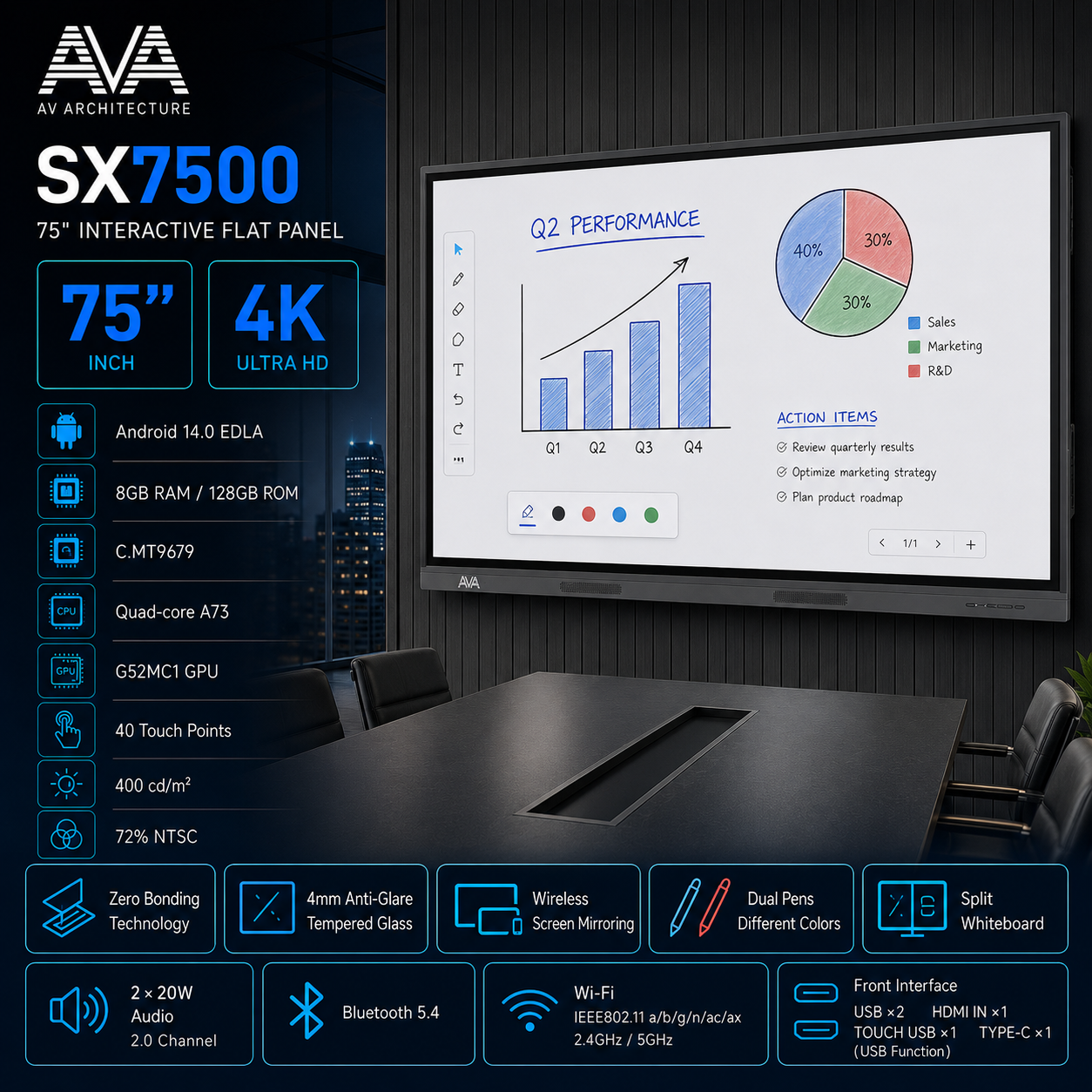

Designed to deliver large-scale interactivity, the AVA SX7500 combines visual clarity, responsive touch performance, and reliable collaboration features in a 75-inch format. Its 4K UHD display, zero-bonding technology, 4mm anti-glare tempered glass, 400 cd/m² brightness, and 178° viewing angle provide clear and consistent visuals across classrooms, meeting rooms, and training spaces. The 40-point IR touch system, ≤5ms touch response, split whiteboard functionality, and dual-pen support enable smooth multi-user interaction and accurate writing. Powered by Android 14.0 EDLA, a Quad-Core Cortex-A73 processor, 8GB RAM, and 128GB ROM, the SX7500 delivers dependable performance for presentations, educational applications, and multimedia content. Built-in Wi-Fi, Bluetooth 5.4, wireless screen mirroring, dual 20W speakers, eye protection, screen lock, and touch lock complete a versatile interactive solution for modern collaborative environments.
